Apex 600
A 600 kW dual-port DC fast charger built for high-throughput fleets, with dynamic power sharing across both ports.
ExploreDC fast charging

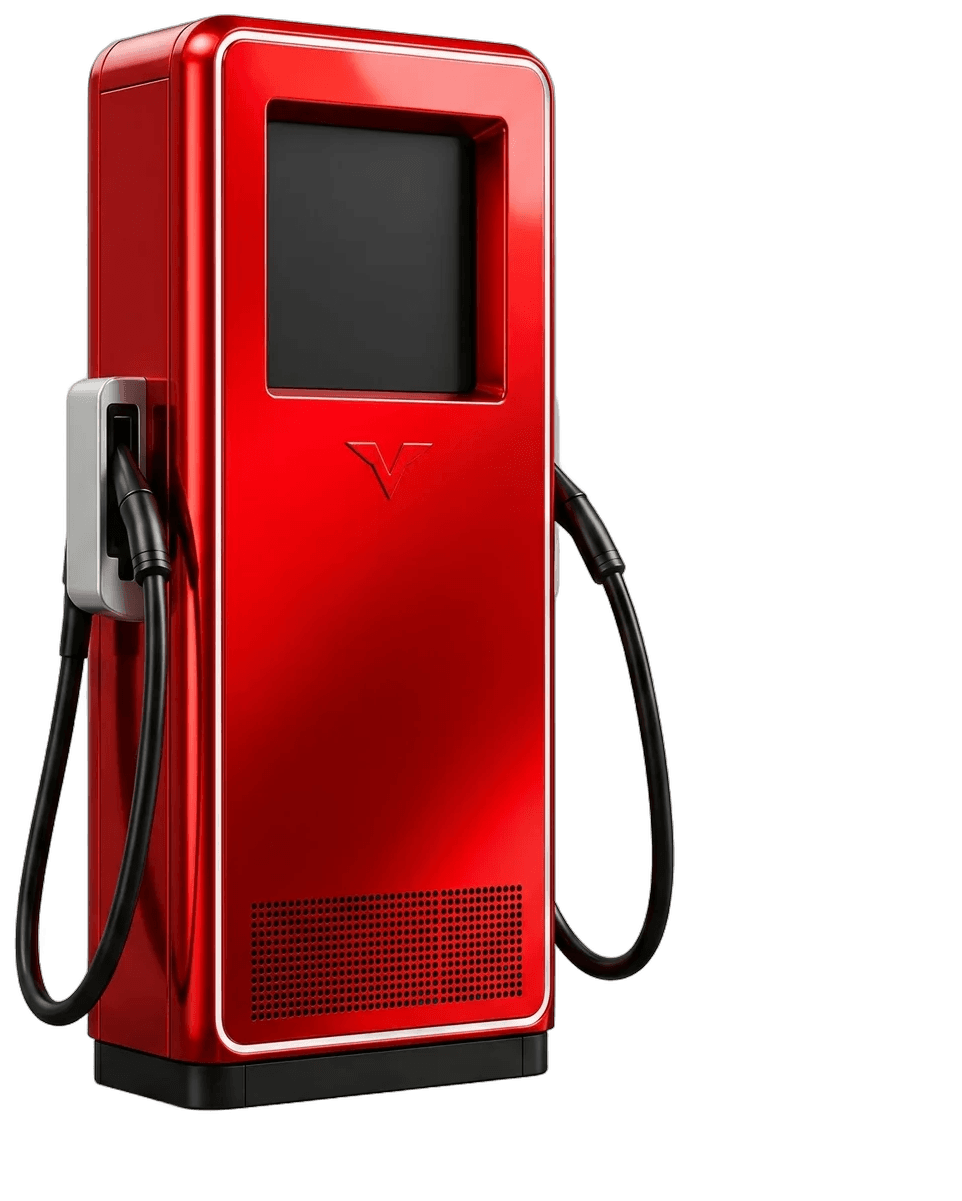

Core 300
300 kW
Core 300 delivers up to 300 kW of dual-port DC fast charging, distributed dynamically across active sessions. Dual CCS1 (Combined Charging System) and NACS (North American Charging Standard) connectors come ready out of the box, and the charger is designed to deliver continuous full power without derating at busy sites.
Dual-port · dynamic power distribution
Rated output300 kW total
Port behaviorDynamic distribution across active ports
ConnectorsDual CCS1 + NACS
SoftwareMeridian Cloud connected
Applications
Core 300 anchors the DC fast charging line for premium fleet and passenger sites. It brings dependable dual-port charging to public locations, campuses, and municipal and light commercial fleets.
- Simultaneous dual-port charging with dynamic power distribution
- Designed to deliver continuous full power without derating
- Engineered toward a 99% uptime target with redundant architecture and predictive diagnostics
- Remote monitoring, diagnostics, and control through Meridian Cloud
Public fast chargingCorporate campusesMunicipal fleetsLight commercial fleets
Best fit
Passenger and light-fleet programs where uptime and presentation both matter
Sites serving two vehicles within the same operating window
Commercial programs that need compact fixed equipment with connected operations
Technical specifications
Specifications reflect current Volatus product documentation (July 2026); final values are confirmed during project configuration.
Electrical
| Rated output | 300 kW total |
|---|---|
| Port configuration | Dual ports with dynamic power distribution |
| Efficiency | Engineered for greater than 96% peak efficiency |
| Power allocation | Dynamic dual-port distribution |
Charging interface
| Ports | Two DC fast-charging outputs |
|---|---|
| Connectors | Dual CCS1 + NACS ready out of the box, no adapters |
| Additional interfaces | Configured per program |
| Cable system | Liquid-cooled cables with integrated management |
Software and connectivity
| Operator interface | Touchscreen with RFID, mobile app, and QR-code options |
|---|---|
| Connectivity | Ethernet, Wi-Fi, and cellular options |
| On-charger software | VolatusOS embedded OS with AI load management |
Operating environment
| Temperature | -30 °C to 55 °C |
|---|---|
| Ingress protection | IP65-rated enclosure |
| Installation | Pedestal or wall mount, front and rear cable exits |
| Footprint | Compact site footprint |
| Availability | Built to order; configuration confirmed during project scoping |
Lifecycle support
- Remote diagnostics and operational visibility
- Preventive and corrective maintenance planning
- Site-advantage assessment for placement, power, and footprint
- Configuration and expansion review as site demand changes
FAQ
01How is power shared between the two ports?
Core 300 delivers up to 300 kW in total, distributed dynamically across active sessions. Allocation behavior is set during project configuration, and session-level maximums for a specific vehicle mix are confirmed during the site assessment.
02Which connectors does Core 300 support?
Dual CCS1 + NACS come ready out of the box with no adapters, so one charger serves both connector standards. Additional interfaces are configured per program.
03Which sites fit Core 300 best?
Public fast charging, corporate campuses, municipal fleets, and light commercial fleets that want premium dual-port DC fast charging in a compact footprint.
04How does Core 300 handle demanding environments?
Core 300 is built with an IP65-rated enclosure and a -30 °C to 55 °C operating range, and it is designed to deliver continuous full power without derating.
05How do VolatusOS and Meridian Cloud relate?
VolatusOS is the embedded operating system on the charger itself, running load management locally. Meridian Cloud is the operations software above it, connecting every Volatus system for monitoring, diagnostics, and reporting.
Start the conversation
Configure Core 300 for your site.
Share the vehicles, the site, the schedule, and the available power. Volatus will configure the system around them.
